xSDR module

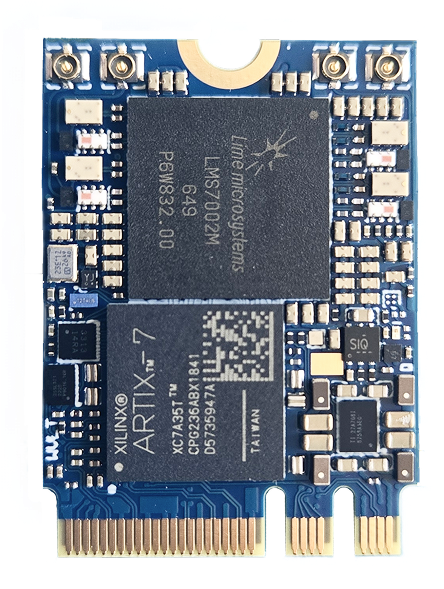

A compact 2RX/2TX Software Defined Radio module in a single-sided M.2 2230 A+E key form factor.

../_images/xsdr-front.png

Introduction

The xSDR is an embedded M.2 Software Defined Radio (SDR) card designed for integration into compact RF systems, edge platforms, laptops, industrial computers, and custom embedded devices.

It provides 2 receive and 2 transmit channels, an RF tuning range from 30 MHz to 3.8 GHz, and a compact M.2 2230 A+E key form factor with USB 2.0 and PCIe 2.0 x2 host interfaces.

By combining the xSDR with the wsdr.io WebSDR platform, users can run SDR applications directly from a browser, stream or share IQ data, and build distributed RF systems without complex driver or software installation.

Key Features

  • 2 RX / 2 TX SDR architecture

  • 30 MHz to 3.8 GHz frequency range

  • Up to 100 MSps sample rate

  • Up to 90 MHz channel bandwidth

  • M.2 2230 A+E key single-sided form factor

  • USB 2.0 and PCIe 2.0 x2 host interface

  • External clock synchronization

  • Low-power embedded operation

  • WebSDR, GNU Radio, SoapySDR, srsRAN, and Amarisoft support

General Specifications

FPGA

  • AMD Artix-7 XC7A50T

  • AMD Artix-7 XC7A35T

RFIC

  • Lime Microsystems LMS7002M

Configuration

  • 2 RX / 2 TX

Power Consumption

  • 1.9 W Typical

  • 3 W Max

Interface

  • M.2 2230 A+E key

  • USB 2.0

  • PCIe 2.0 x2

Power Supply Range

  • 2.85 V to 5.5 V

External Clock Synchronization

  • Supports synchronization of multiple boards for multi-channel and distributed RF systems

RF Specifications

Frequency Range

  • 30 MHz to 3.8 GHz

Sample Rate

  • 0.1 MSps to 100 MSps

Channel Bandwidth

  • 0.5 MHz to 90 MHz

RF Architecture

  • Full-duplex direct-conversion SDR transceiver

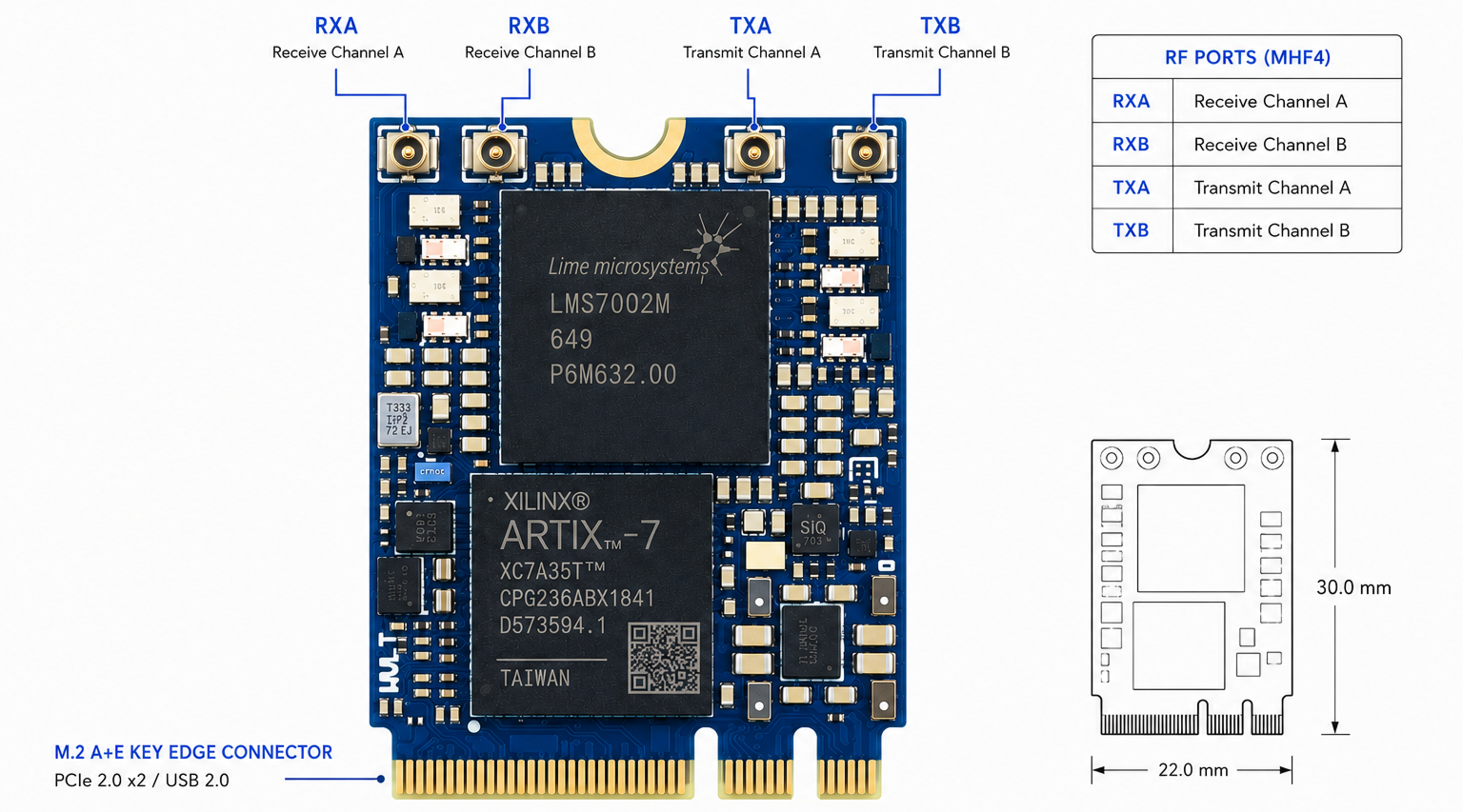

Pinout

xSDR module

Embedded Integration

The xSDR is designed for compact embedded deployment where size, power, and flexibility are critical. It can be integrated into:

  • Embedded computers

  • Edge AI platforms

  • Industrial PCs

  • Portable RF systems

  • Robotics and unmanned systems

  • Custom carrier boards

  • Mini PCIe systems using an adapter

WebSDR Platform

The xSDR is compatible with the Wavelet Lab WebSDR platform, enabling browser-based SDR workflows.

Using wsdr.io, users can:

  • Run SDR applications in a browser

  • Access hardware remotely

  • Stream and share IQ data

  • Build distributed RF sensing networks

  • Collaborate across multiple locations

  • Reduce setup time by avoiding complex local software installation

Target Applications

Cellular Communication

  • Build LTE and 5G research networks using srsRAN or Amarisoft

Embedded RF Systems

  • Add SDR capability to compact embedded platforms, edge devices, and portable systems

Spectrum Monitoring

  • Develop compact RF monitoring systems for signal detection, interference analysis, and spectrum observation

Distributed RF Sensing

  • Deploy multiple synchronized xSDR devices for distributed sensing and remote RF data collection

Data Link Applications

  • Build flexible communication links and stream data through local or web-connected SDR systems

Software Support

Web Platform

  • wsdr.io WebSDR platform

Native Software

  • GNU Radio

  • SoapySDR

  • srsRAN

  • Amarisoft

  • SDR++

  • CubicSDR

  • GQRX

Licensing

Host Software

  • MIT License

FPGA Gateware

  • CERN-OHL-P-2.0
